Liquidware Triangle Extenders

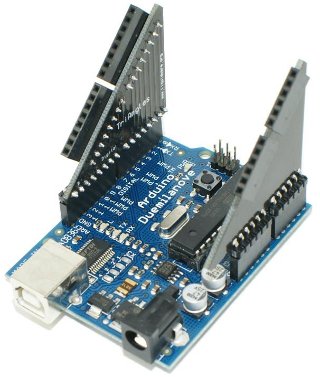

Photo: Liquidware

Shield URL: Triangle Extenders
Tags:
Maker: Liquidware

Triangular shaped wedges to rotate other shields 45 degrees off the Arduino.

Open Source: Unknown
License: Unknown
Source: Unknown
AREF
GND
D13 / SCK
D12 / MISO
RESET D11 / MOSI ~
3.3V D10 / SS ~
5V D9 ~
GND D8
GND
VIN D7
D6 ~
A0D5 ~
A1D4
A2D3 ~
A3D2
A4D1 / TX
A5D0 / RX
Note:
No pins used, purely mechanical.
