RepRap Research Foundation Breakout Shield v1.4


Photo credits: unknown

Shield URL: Breakout Shield v1.4
Tags: prototyping
Maker: RepRap Research Foundation

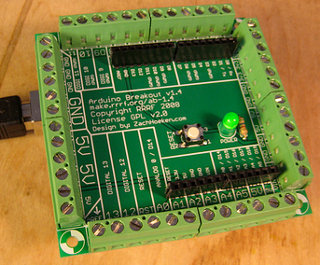

The Arduino Breakout Shield provides all the Arduino pins as screw terminals. It is perfect for semi-permanent Arduino projects, or just general prototyping. It also provides extra GND, 3.3V, 5V, and Supply voltage pins for convenience.

Version 1.4 fixes a potential short problem, and adds additional female headers to allow shield stacking.

Open Source: Yes, OSHW-compliant
License: GPL v2
Source: Unknown
AREF
GND
D13 / SCK
D12 / MISO
RESET D11 / MOSI ~
3.3V D10 / SS ~
5V D9 ~
GND D8
GND
VIN D7
D6 ~
A0D5 ~
A1D4
A2D3 ~
A3D2
A4D1 / TX
A5D0 / RX
